Advantage
The product supports each OBD2 comparative voltage display, supports 12V/24V voltage test, supports short-circuit protection, and has a constant voltage function, making ECU programming more stable!
Application

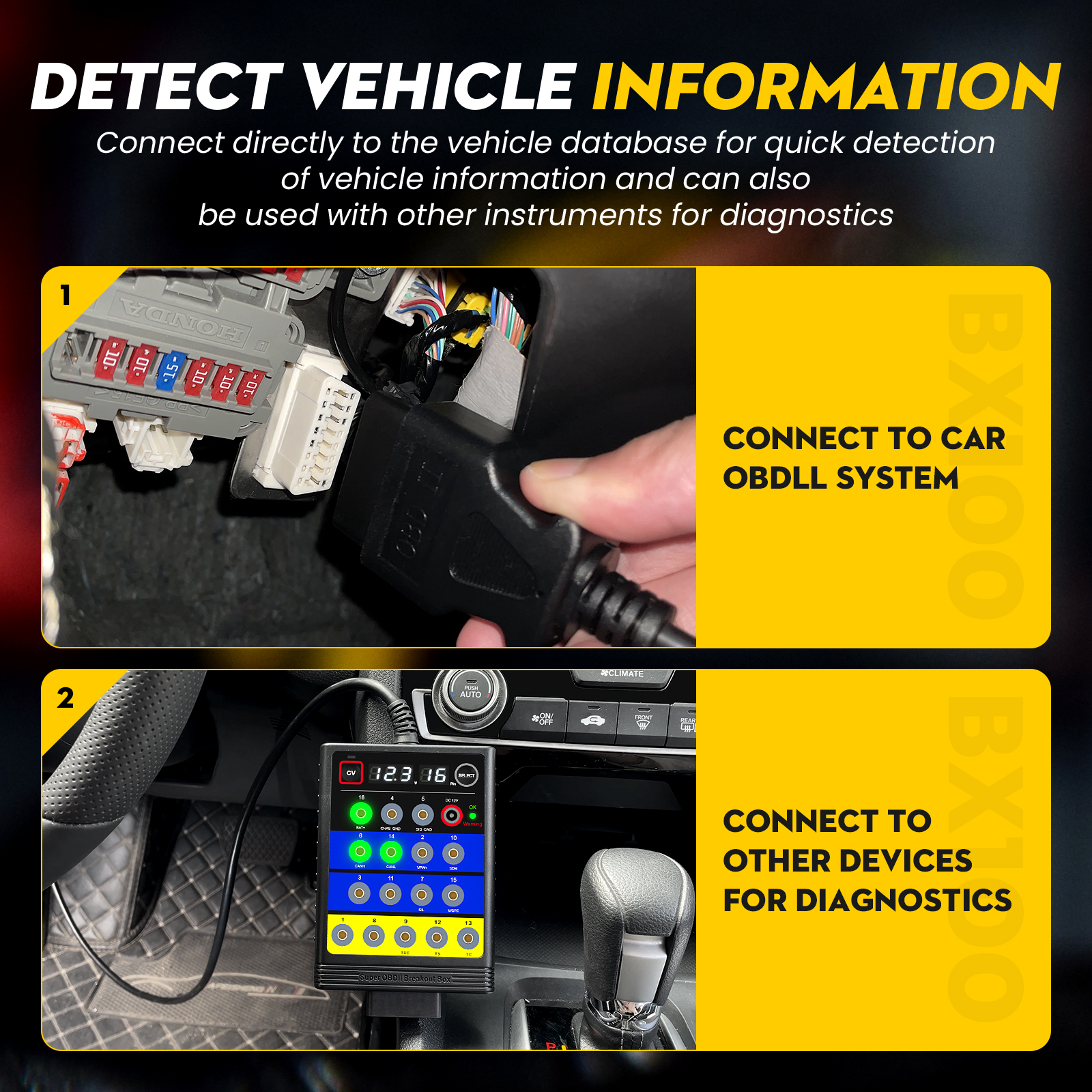

BX100 is a OBDII universal jumper tester suitable for 12V or 24V automotive systems, before the diagnostic equipment is connected to the automotive diagnostic interface, you can use BX100 to detect the voltage on each pin of the diagnostic interface, anal
Technical parameter

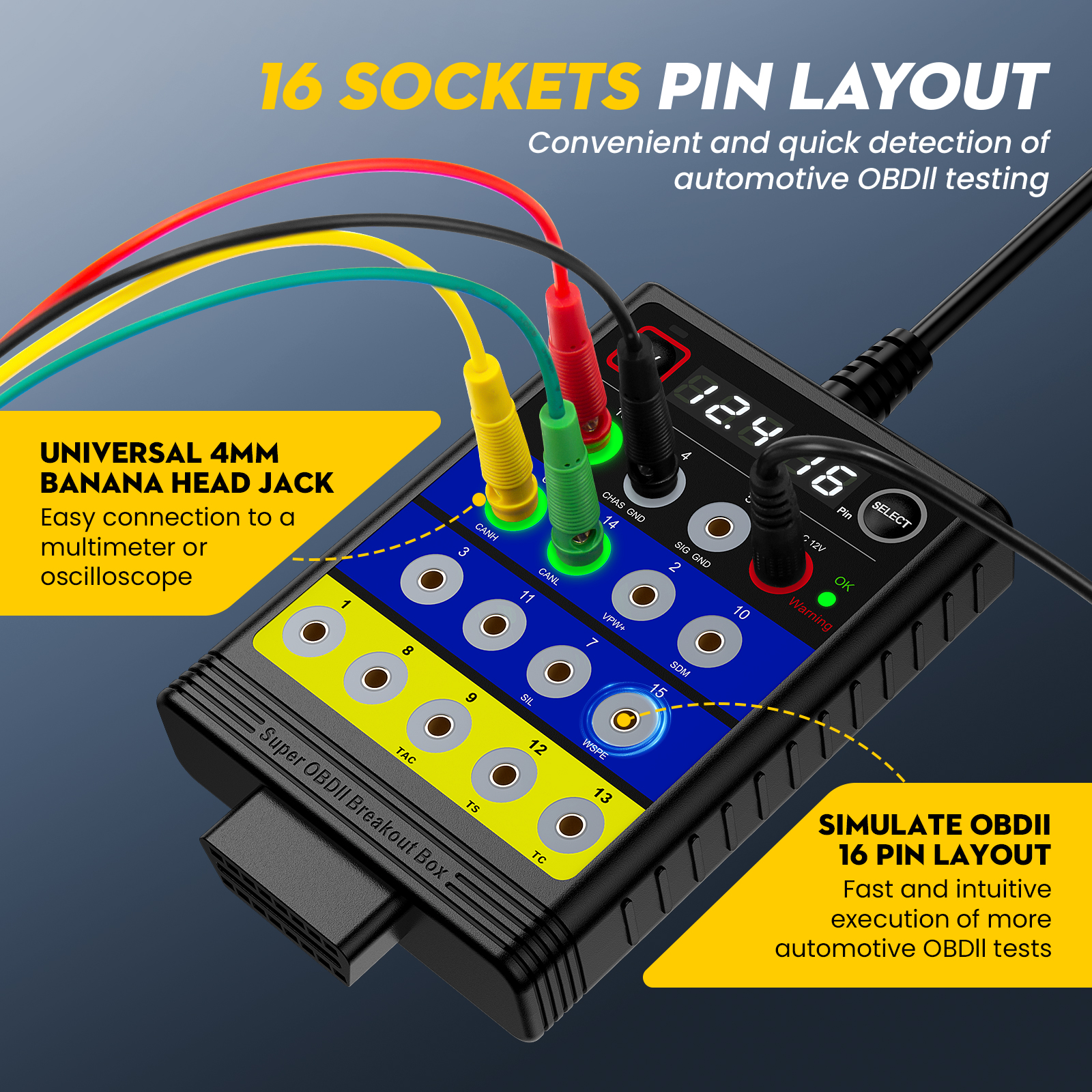

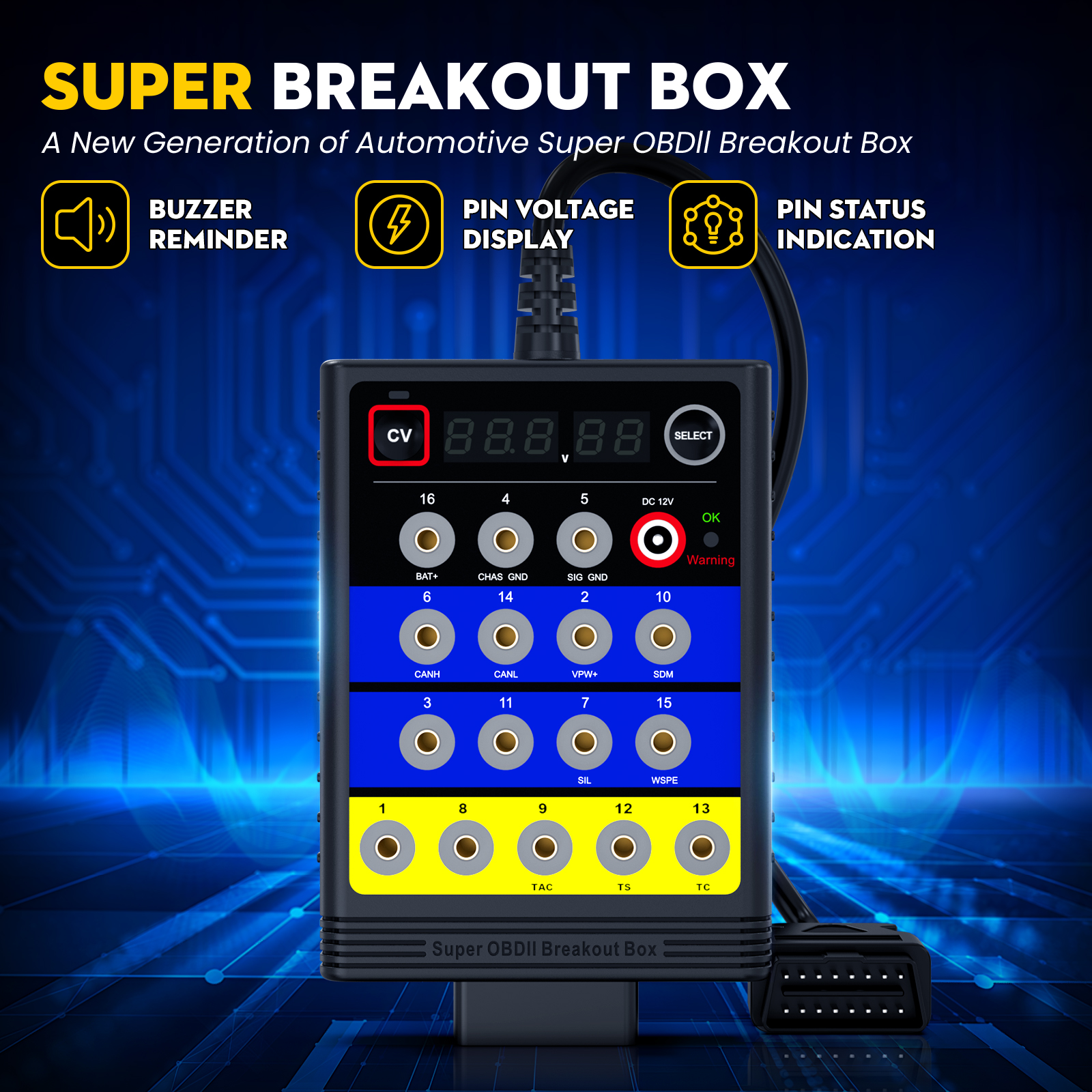

BX100 Super OBD2 Multipurpose Jumper
1. Support 12V/24V voltage input
2. Support K-line and CAN-BUS signal display, and support private protocol pin signal display

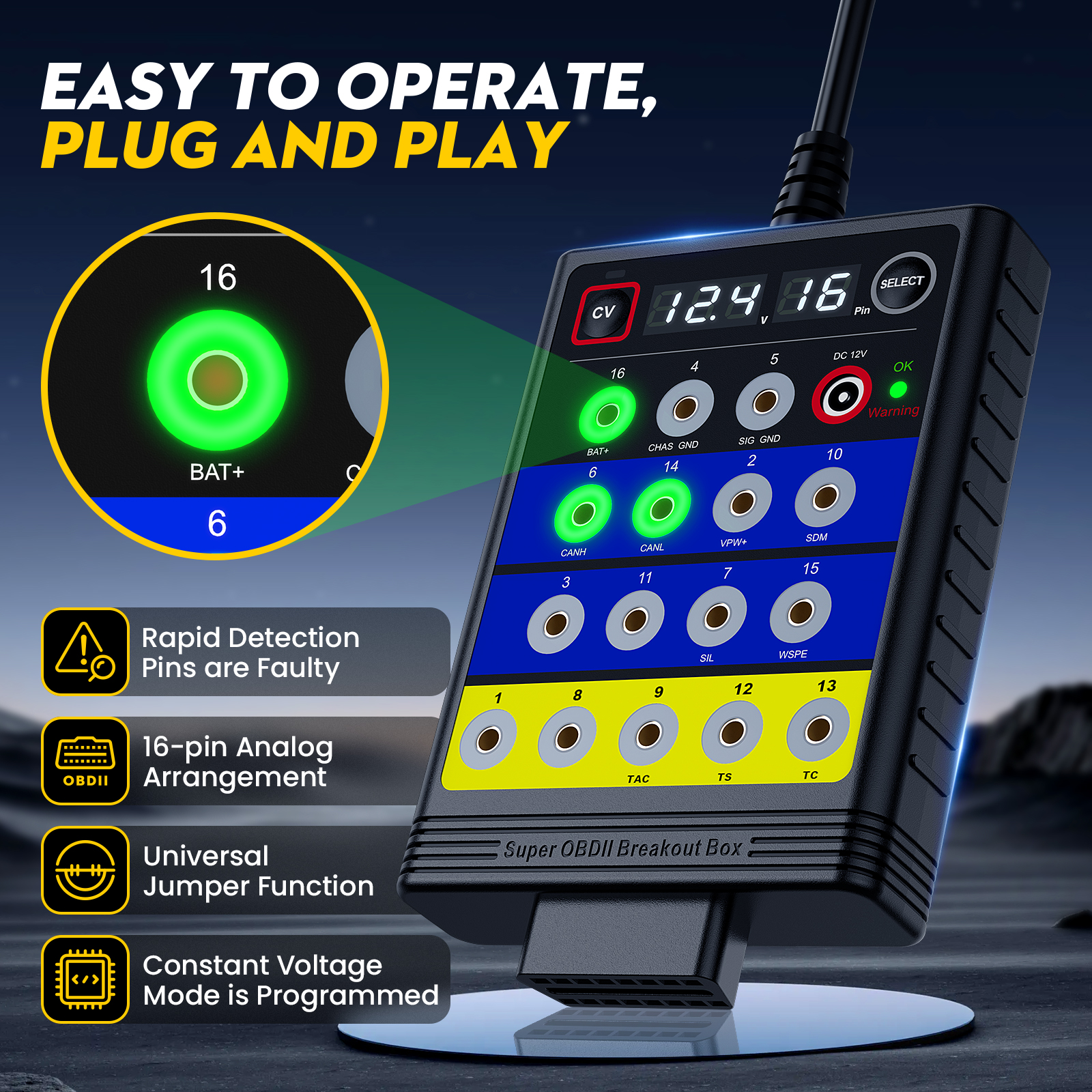

3. Support testing for short circuit and reverse polarity (when the device is short-circuited or reversed, the LED light at pin #4 and #5 is always on)

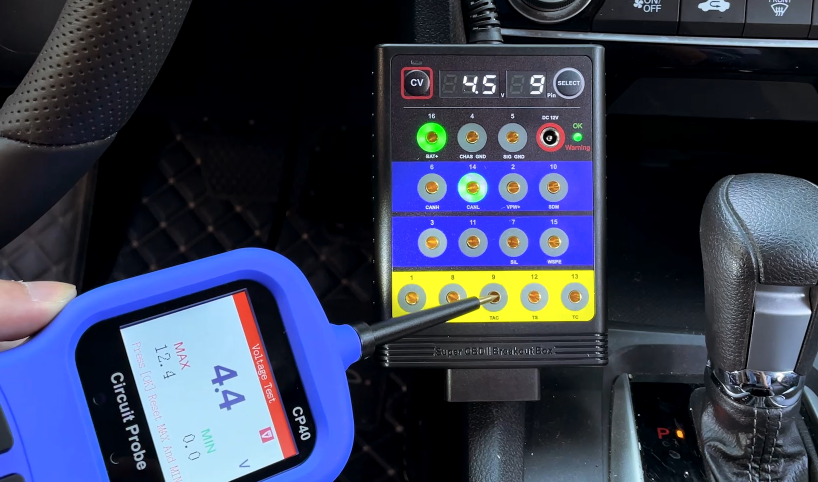

4. Support to view the voltage value of each pin (click the select button to switch pins, press and hold to reset)
5. Indication of too high and too low voltage (12V/24V has buzzer warning prompt)
6. Short circuit protection function support: short circuit caused by short circuit of external power supply equipment/short circuit caused by jumper power supply/short circuit at the OBD end/ECU side / short circuit at the decoder end
7. Support 4 power supply modes
8. ECU Programming voltage stabilization function [the programming voltage can be constant when the automotive ECU is programmed to protect the ECU from being programmed]
9. Short-circuit protection (if there is a short-circuit during the test, the device will be protected in milliseconds)
10. Replace the uninterruptible power function of the car battery

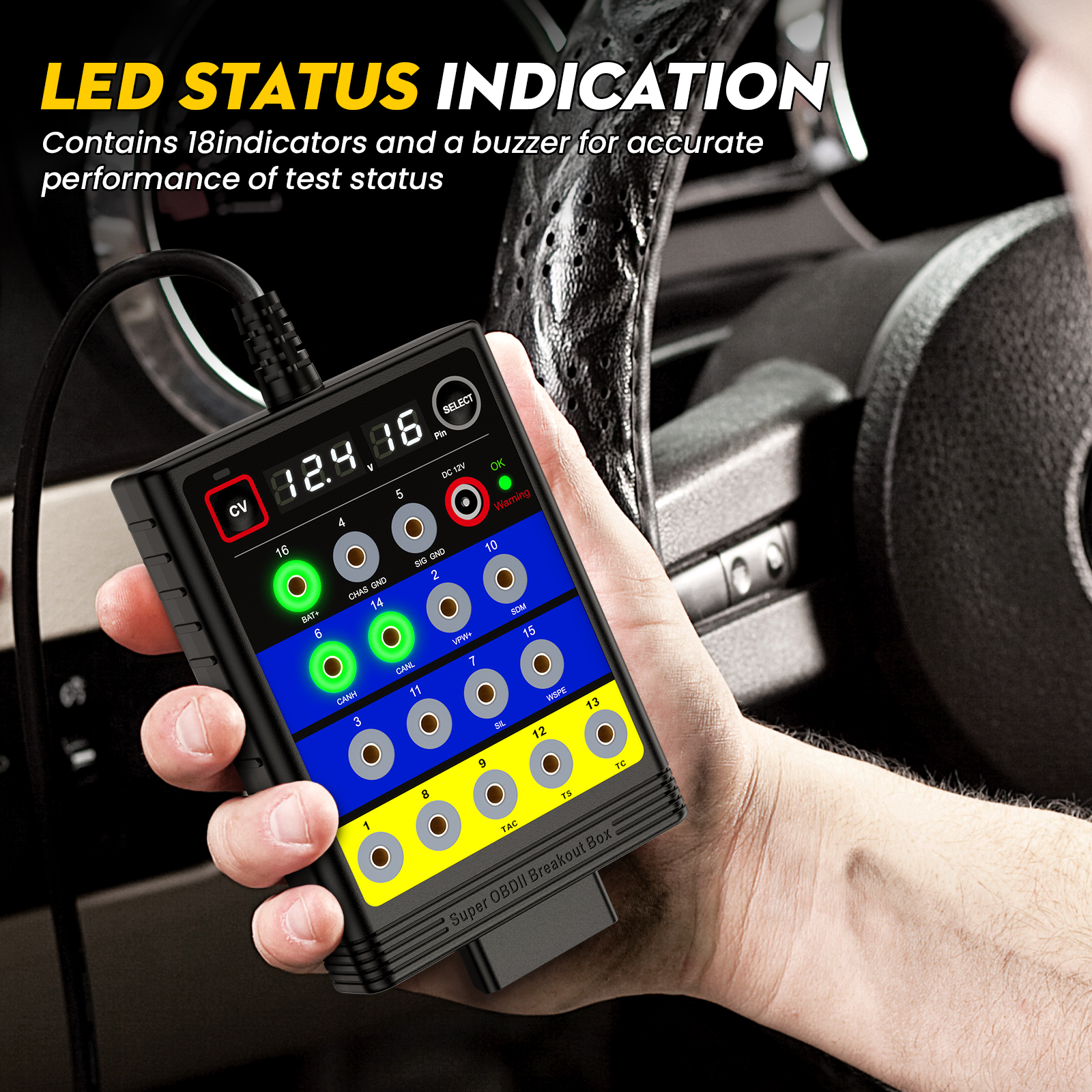

11. The ultra-bright signal indicator at the foot position is still visible in strong light
Power supply range: 8V~35V DC diagnostic head power supply or 12V DC 2A or 24V DC 2A power adapter
