Application
The products are widely used in: automotive line maintenance, automotive component activation, component testing, sending pulse signals, fuel injection nozzle repair, automotive battery testing, measuring resistance voltage, diodes, and collecting and dis

Technical Parameter
   Minimum supply voltage: 8VDC

   Maximum supply voltage: 32VDC

   Voltage test range: 0-80VDC

   Voltage accuracy: 0.1V

   Probe tip impedance to ground: 4.7M

   Resistance test range: 0.1MΩ (please pay attention to the error value when it is greater than 200K)

   Frequency test range: 5Hz - 20K Hz

   Oscilloscope maximum sampling rate: 1M Hz

   The maximum monitoring frequency of the oscilloscope: 20K Hz

   Circuit Breaker: 8A Thermal - Self-Resetting

   Short-circuit automatic protection response time: 0.01ms

   Screen size: 2.4 inches

   Extension cable length: 10 meters

Application

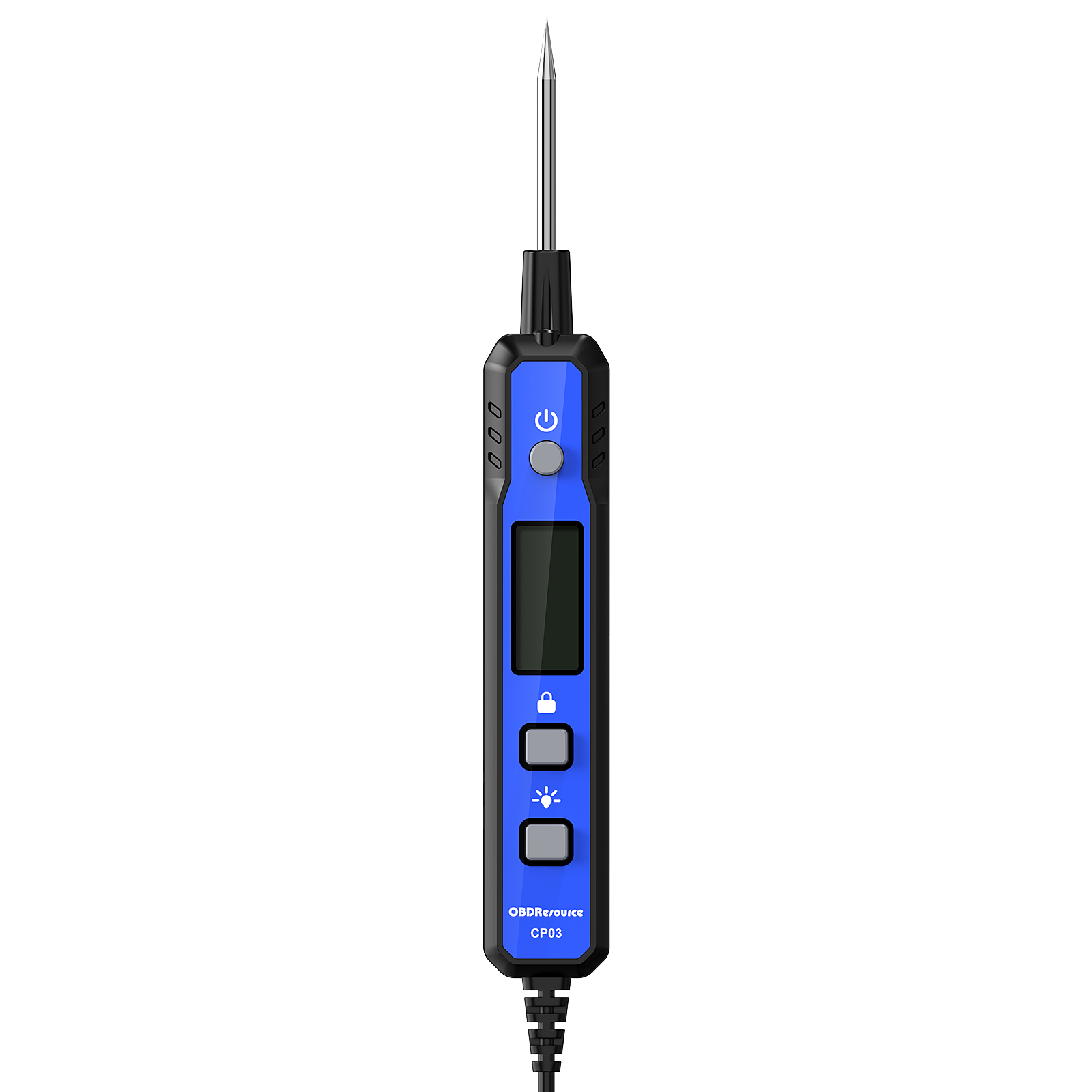

The OBDResource CP03 circuit tester incorporates a default smart measurement mode that automatically recognizes electrical signals- including DC voltage, polarity, resistance, and continuity—and displays results on the screen in real time, requiring no ma

Technical Parameter
1. Intelligent Automatic Detection FunctionFully Automatic Signal Recognition: In the default smart measurement mode, the probe automatically identifies measured signals (DC voltage, polarity, resistance, and continuity) upon contact with the power supply or resistance, eliminating the need for manual mode switching and ensuring minimal operation.Data Hold Function: Press the "Hold" button to lock the measured data on the screen for easy recording and reading, streamlining the testing process.2. Wide-Range Multifunctional TestingBroad Voltage Detection Range: Supports 0.8V–100V DC voltage testing, suitable for various vehicle circuit applications, including car fuse testing, wire diagnostics, battery analysis, and ACC system inspections.Automatic Polarity Detection: Instantly identifies the positive/negative terminals of the battery; a "-" symbol preceding the reading indicates negative polarity for intuitive and error-free diagnosis.Precision Resistance & Continuity Testing: Offers a resistance detection range of 1Ω–20MΩ, with resolutions of 0.001V (under 2V DC) and 0.1V (at 100V DC) for voltage, and resistance resolutions ranging from 1Ω–0.01MΩ (low resistance) to 2000Ω–20MΩ (high resistance). Accuracy is rated at ±1%, meeting professional-grade testing standards.3. Safety & Precision EngineeringReal-Time Alerts: A built-in buzzer triggers an alarm when resistance falls below 50Ω, while the screen displays "OL" for DC voltages exceeding 100V, providing instant warnings for abnormal conditions.Safe Operation Design: Features a long spring negative clip and a protective probe head cover, enabling one-handed operation and safe storage to prevent short circuits and ensure user safety.4. User-Centric Convenient DesignLow-Light Adaptability: Equipped with a backlit LCD display and a built-in flashlight, allowing clear readings and precise operations in dim environments. Short-press the light key to toggle the screen backlight; long-press to switch the flashlight on/off.Energy Efficiency & Portability: Auto-shuts off after 15 minutes of inactivity to conserve battery life. Includes a storage bag for easy transportation and secure storage when not in use.5. High Precision & Professional-Grade PerformanceVersatile Applications: Designed for comprehensive vehicle circuit maintenance, from basic fuse checks to complex system diagnostics, catering to both DIY enthusiasts and professional mechanics.Intuitive Feedback: Displays clear indicators (e.g., polarity "-", overvoltage "OL") and audible buzzer feedback, minimizing user error and enhancing troubleshooting efficiency.

Application
CP10 supports 0-80V voltage test, component activation, short circuit finding, grounding detection, diode test and other functions, the device comes with over-temperature protection, automatic reset, portable and easy to use.

Technical Parameter

   Test voltage: 0-80V

   Input voltage: 8-32V

   Operating current: 80mA

   Activation current: 0-8A

   Supporting Functions:

   Test polarity and voltage

   Trailer lights and connection testing

   Continuity and grounding tests

   Jumper test

   Diode testing

   Track and locate short circuits

   Overload protection

   Component activation and testing

   Quick self-test

Application
The CP20 supports voltage testing from 0 to 80V, component activation, short circuit detection, ground fault testing, diode testing, waveform display, and more. The device comes with over-temperature protection and automatic reset functionality, making it

Technical Parameter
Specifications:Testing Voltage: 0-80VInput Voltage: 8-32VOperating Current: 80mAActivation Current: 0-8A

Supported Functions:Polarity and voltage testingTrailer light and connection testingContinuity and ground testingJumper wire testingDiode testingShort circuit tracking and locationOverload protectionComponent activation and testingQuick self-testOscilloscope functionalityOne-touch screen rotationScreen data freezeBeeper alarm

Application
The CP30 supports voltage testing from 0 to 80V, component activation, short circuit detection, ground fault testing, diode testing, fuel injector testing, frequency measurement, duty cycle analysis, ground testing, and waveform display. The device comes

Technical Parameter
Specifications:Testing Voltage: 0-80VInput Voltage: 8-32VOperating Current: 80mAActivation Current: 0-8A

Supported Functions:Polarity and voltage testingTrailer light and connection testingContinuity and ground testingPositive and negative terminal testingShort circuit and open circuit testingJumper wire testingFrequency and duty cycle displayDiode testingShort circuit tracking and locationOverload protectionComponent activation and testingQuick self-testOscilloscope functionalityOne-touch screen rotationScreen data freezeBeeper alarm
